Shooters Revolution Ball Sensor — Precision Training Aid for Basketball Shooting Technique

Client: Shooters Revolution

Expertise: Embedded System Design, Wearable Sensor Development, Sports Product Engineering, Electronic Device Prototyping

The Challenge

Shooters Revolution sought to innovate basketball training with a cutting-edge sensor that helps players develop proper shooting technique—specifically achieving the ideal backspin and rotation axis on the basketball. The goal was to design a compact, durable electronic sensor embedded within the basketball that provides immediate feedback via audible tones when a shot meets strict spin criteria.

This sensor needed to be unobtrusive to normal ball handling, highly accurate in detecting spin rate and axis alignment, and easy to use in dynamic training environments. Additionally, automatic power management was critical to maximize battery life and enhance usability.

Our Approach: Precision Sensor and Embedded System Development

Southwest Engineering Concepts (SOENCO) engineered the core electronics and firmware for the ball sensor, employing a high-precision gyroscope to measure the ball’s angular velocity on a single axis.

Key technical highlights included:

1. Gyroscope-based analog signal acquisition filtered through custom low-pass circuitry to minimize noise from bouncing and passing
2. Embedded microcontroller programming to sample spin rate ten times per second and compare measurements against programmed thresholds for proper backspin (≥2.0 revolutions per second sustained for ≥0.5 seconds)
3. Intelligent logic to differentiate valid shooting spins from passes or bounces, preventing false positive feedback
4. User-friendly controls with press-and-hold power on/off, accompanied by distinct audible tones for state changes
5. Power-saving features including automatic idle and shutdown modes after periods of inactivity to extend battery life

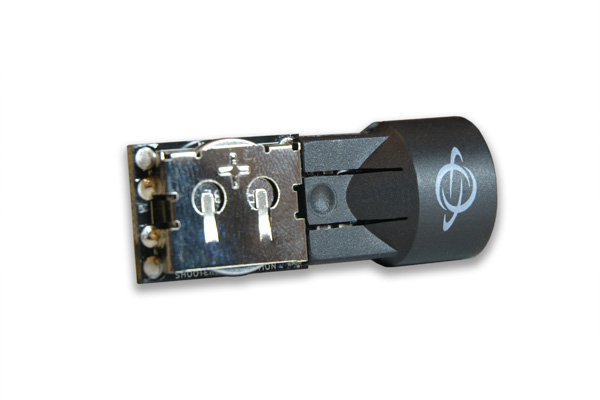

6. Compact electronics design conforming to strict dimensional constraints (≤65mm length, ≤18mm diameter) for seamless integration into the basketball without affecting performance
7. Robust hardware and firmware designed to withstand the dynamic forces experienced during normal basketball play

The Result: A Smart Training Tool Enhancing Shooting Precision

The completed Shooters Revolution Ball Sensor offers players and coaches real-time feedback on shooting quality, allowing for focused development of proper backspin and shooting mechanics. Its clear, audible tones indicate successful shots with adequate spin, providing instant validation and reinforcing muscle memory during practice.

This innovative embedded sensor system supports basketball training at all levels, from amateur players to professionals, with durable construction and intelligent power management ensuring reliable use in real-world environments.

The Impact

SOENCO’s work on the Shooters Revolution Ball Sensor demonstrates our ability to deliver advanced sports training aids combining embedded systems engineering, sensor signal processing, and ruggedized product design. The project highlights how precision electronics and smart software can come together to produce impactful, user-centric devices that enhance athletic performance.

By focusing on accuracy, usability, and durability, we helped bring a smart, scientifically grounded training aid to market that empowers athletes to elevate their shooting technique and confidence on the court.
