High-Precision Multi-Head Printer Controller – Firmware-Configurable Digital Printing Solution

Client: DTF Superstore

Expertise: Industrial Electronics, Digital Print Controller Design, Firmware-Configurable Multi-Head Printing, Precision Motion Control, Print Automation Hardware

The Challenge

Professional printing operations often struggle with inconsistent print quality, especially when using multiple inks or working under varying temperature conditions. Standard printer controllers lack the flexibility to manage different ink viscosities, adjust timing tolerances, and calibrate for environmental changes—forcing operators to spend time troubleshooting instead of producing high-quality prints. Many professional systems—especially those using industrial print heads such as the RICOH GH2220—require precise voltage and timing control to maintain consistent output.

The client sought a high-precision, firmware-configurable digital printer controller capable of managing multiple print heads, adapting automatically to temperature and ink variations, and ensuring reliable, professional-grade print results. The system also needed to integrate seamlessly with existing workflows while remaining user-friendly and future-proof.

Our Approach: Flexible, Firmware-Driven Print Controller Development

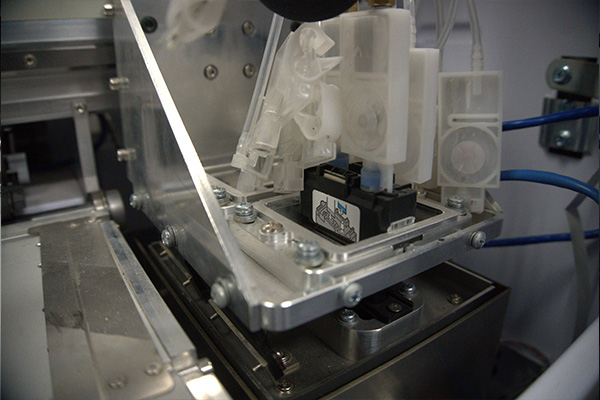

SOENCO collaborated closely with the client to design an advanced multi-head printer controller capable of driving industrial heads including the RICOH GH2220 series, a widely used industrial piezo print head known for reliability and precision. The focus was on firmware-configurable control, integrated motion feedback, and robust high-voltage management, ensuring the system could meet the demanding needs of modern digital printing environments.

Key areas of development included:

1. Firmware-configurable multi-head print management: Each print head can be individually tuned for voltage, timing, and spacing, enabling precise printing with multiple ink types and viscosities.
2. Adaptive temperature compensation: Built-in sensors automatically adjust print head voltage to maintain consistent ink performance across a wide range of temperatures.

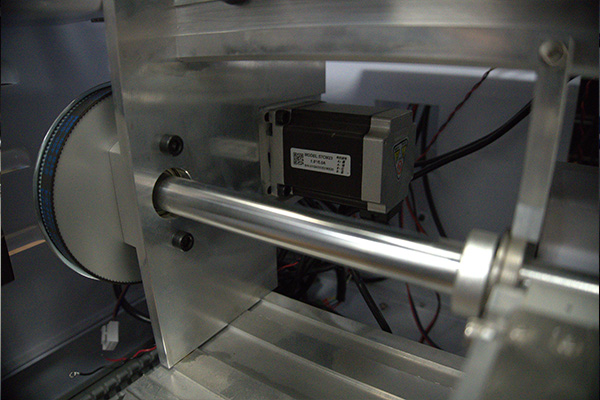

3. Integrated stepper motor control with encoder feedback: Ensures precise movement and alignment of print heads, reducing calibration errors and improving overall print quality.
4. User-friendly interface: A compact LCD and intuitive menu system allow operators to configure print heads, adjust offsets, and monitor performance without specialized training.
5. Flexible print data input: Supports USB and SD card workflows, compatible with popular digital printing software.
6. Robust power management and EMI protection: Carefully designed multi-voltage circuits separate high-voltage print head drives from sensitive digital electronics, minimizing electrical noise and maximizing reliability.

Throughout development, our engineers translated complex printing requirements into a practical, scalable, and highly configurable system.

The Result: High-Precision Multi-Head Print Controller

The completed controller is a commercial-grade digital printing solution that delivers firmware-driven multi-head control, adaptive temperature compensation, and integrated motion feedback, ensuring consistent, high-quality output with minimal setup or calibration.

Key Features:

1. Firmware-configurable control for multiple print heads
2. Automatic temperature compensation for consistent ink performance
3. Integrated stepper motor control with encoder feedback
4. Intuitive LCD and rotary interface for operator ease-of-use
5. USB and SD card print data input for workflow flexibility
6. High-voltage management with EMI reduction
7. Configurable print head spacing and timing for mechanical tolerances
8. Designed for industrial-scale reliability and long-term performance

The Impact

This high-precision, firmware-configurable print controller allows the client to produce consistent, professional-grade print results across multiple inks and environmental conditions while reducing calibration time and operator errors. Operators can focus on production rather than troubleshooting, and the modular design supports future upgrades and system expansion.

By combining advanced digital electronics, firmware-driven control, and robust motion feedback, SOENCO delivered a solution that enhances print quality, reliability, and operational efficiency—demonstrating our expertise in industrial print automation hardware, digital printer controller design, and high-performance engineering solutions. Support for proven industrial components like the RICOH GH2220 ensures long-term reliability and simplified maintenance for the client.
